Product Introduction
Suitable for the machining of various high-strength and precision workpiece threads, including ordinary threads, trapezoidal threads, modular threads, threaded threads, etc. It has the characteristics of reasonable design, strong processing capability, no need for adjustment and disorderly deduction, and high efficiency.
Technical Parameter
| Project | Parameter |
| Processing scope | 8-100mm |
| Roller shaft diameter | 75mm |
| Maximum rolling force | 300kn |
| Rolling time adjustment range | 0.1-99.9s |
| Spindle transmission power | 11kw |
| External dimensions | 2100×1850×1650mm |
| Rolling wheel range | 170-220mm |
| Rolling wheel width | 30-120mm |
| Spindle inclination angle | +5° |
| Adjustment range of downtime | 0.1-99.9s |
| Rolling transmission power | 4kw |
| weight | 3800kg |
Group Photo
Keywords
Z28-215 Hydraulic Thread Rolling Machine
Suitable for machining threads of various high-strength and precision workpieces.
Contact Us
Classification
Get A Quote
We will contact you within one working day. Please pay attention to your email.
Related Products

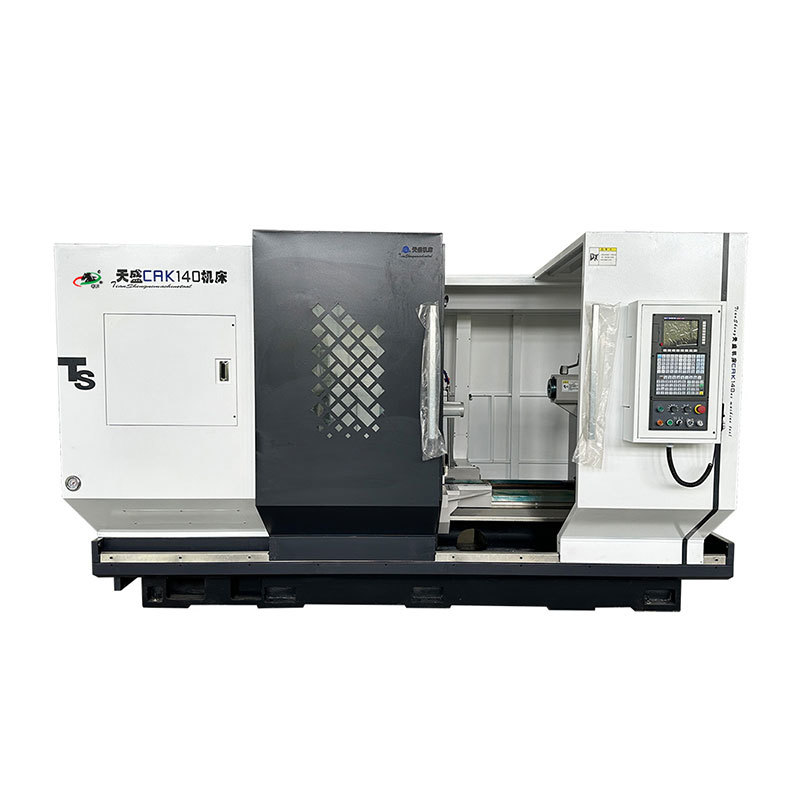

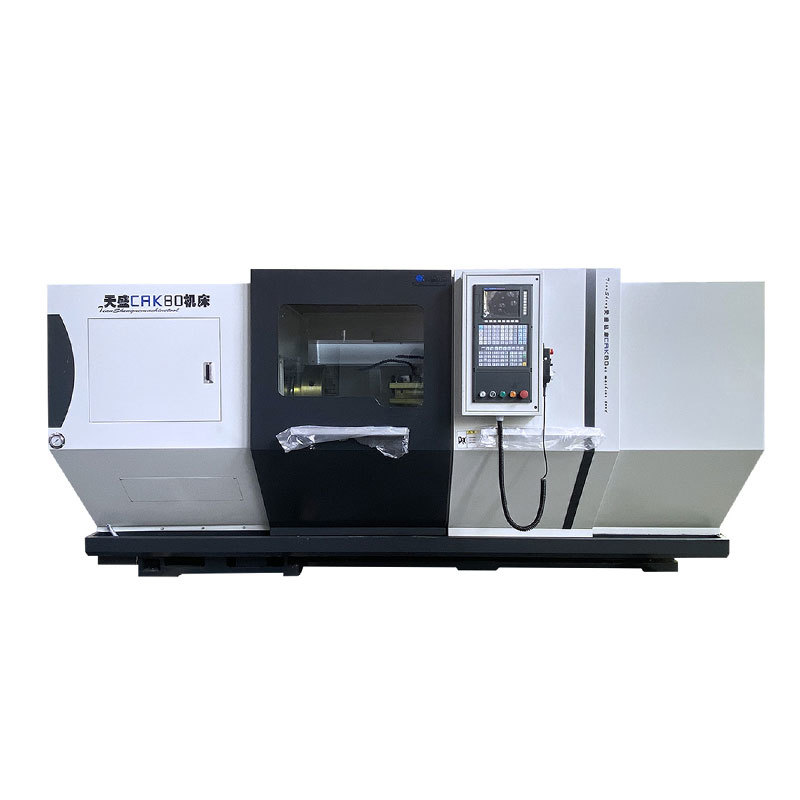

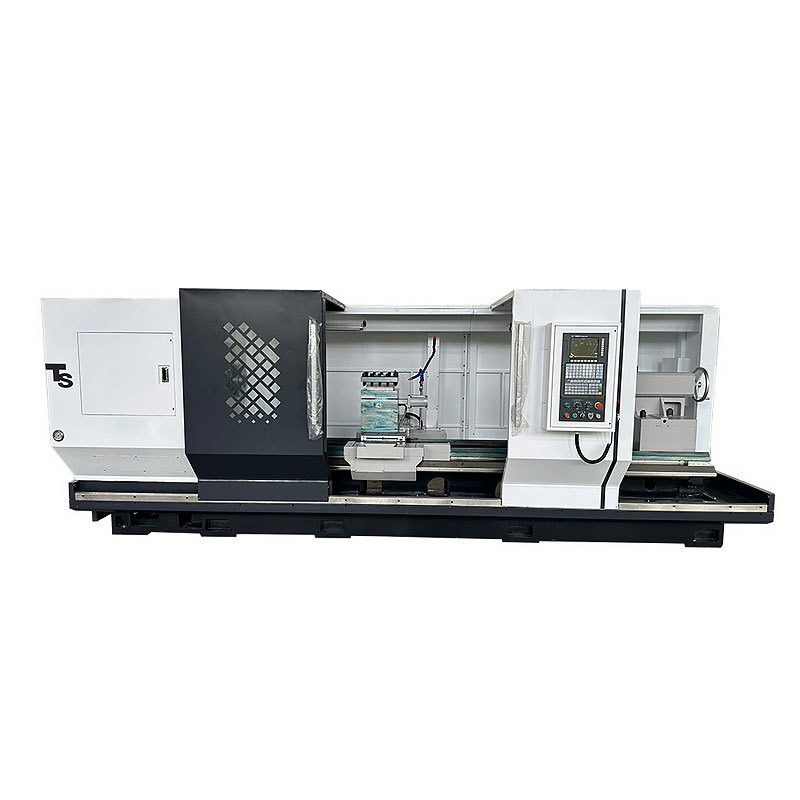

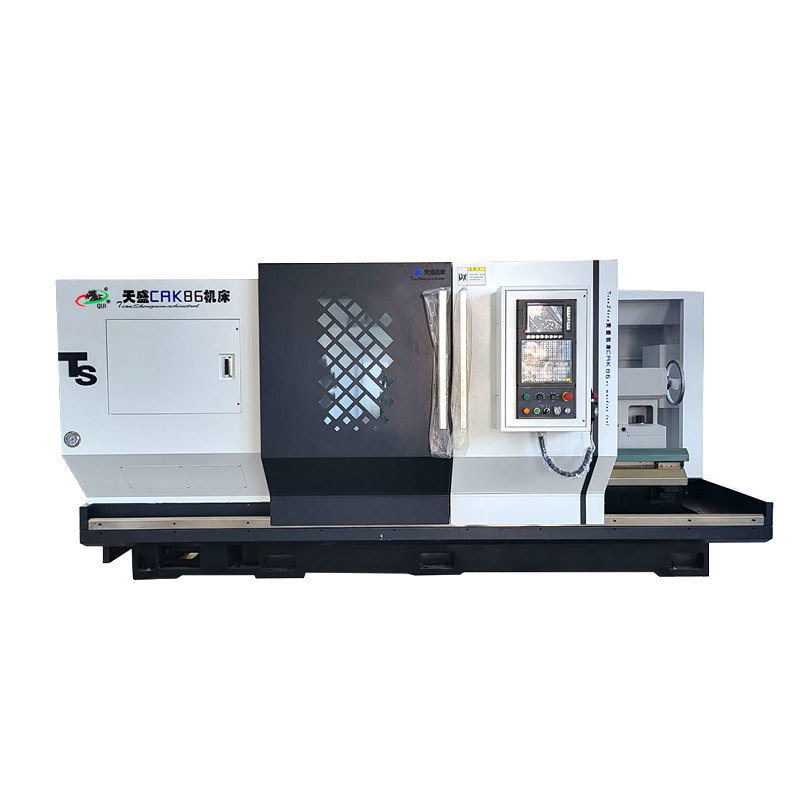

CNC CK61110 Horizontal Turning Center Heavy Duty Digital Lathe Machine with New Motor Used Condition
